Rotary Changeover Switch 1000A - Tronic Kenya

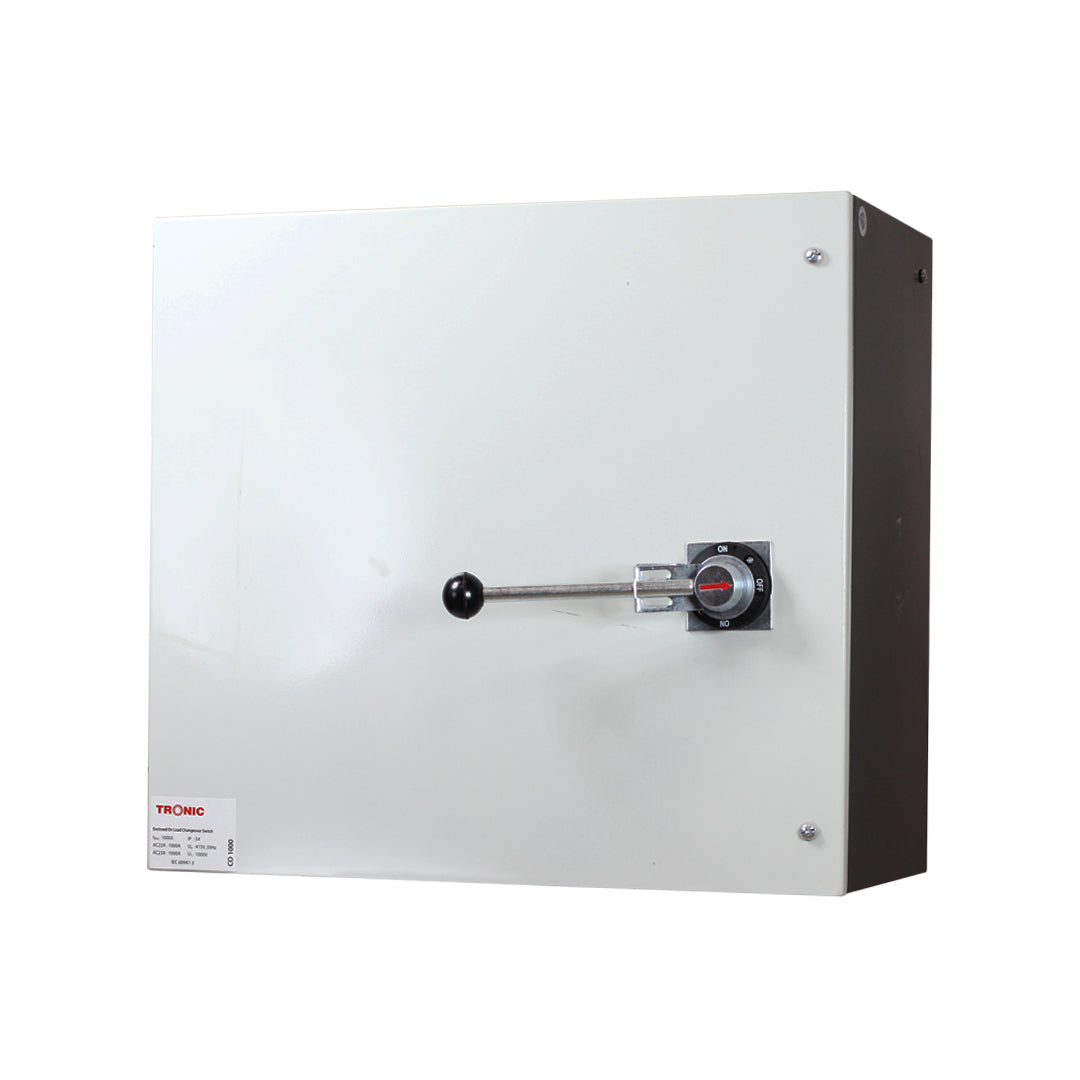

Rotary Changeover Switch 1000A

SKU CO 1000

Sold Out

3,910,000.00 TZS - 3,910,000.00 TZS

3,910,000.00 TZS

3,910,000.00 TZS - 3,910,000.00 TZS

3,910,000.00 TZS

Availability:

Out of Stock

Delivery time

1-3 Days

Description

Function:

On Load manual changeover between 2 sources.
Emergency Breaking
Selection between two loads
Safe isolation of downstream loads for maintenance purpose

Specifications:

Colour: Grey
Amps: 1000Amps
Voltage: AC 415V
Dimensions: Height 350mm x Width 455mm
Material: Aluminium
Additional Information:
- CRCA Sheet (Door 1.2 mm & Body 1.6mm) 63A to 800A
- CRCA Sheet (Door 1.6mm & Body 2.0mm)1000A to 3150A
- 2 External earthing points on each side
- Wall mounted with 4 bolts
- Door locking system allows opening of door only in OFF position
- Incoming & outgoing easily interchangeable at site
- Coating of epoxy polyester powder 70 micron
- Removable plate top & bottom
- Door with solid hinges

Warranty:

1 Year
