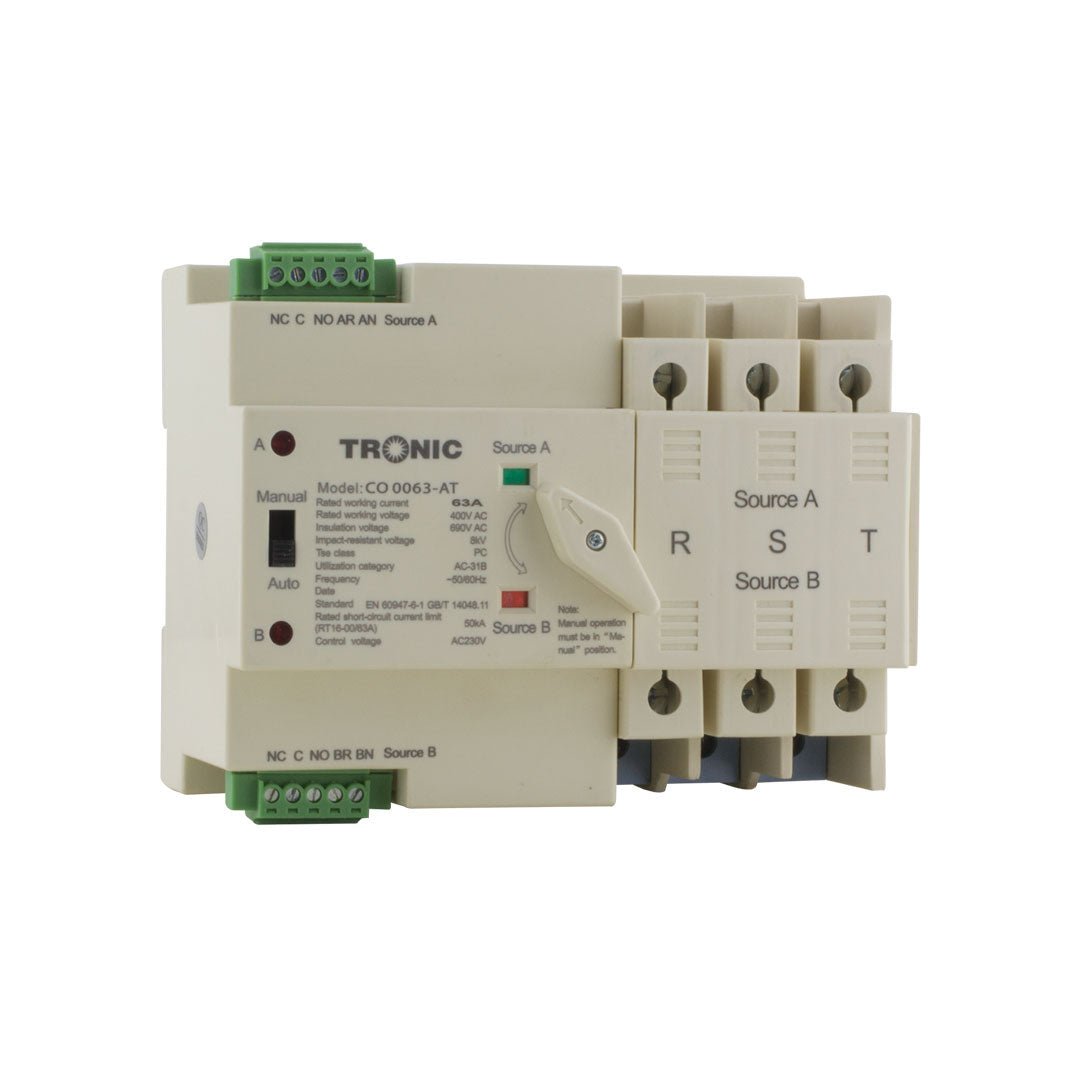

Automatic Transfer Switch 63A

214,000.00 TZS

Product SKU : CO 0063-AT

Availability : Out Stock


TRONIC dual power supply automatic transfer switch is our latest miniature household power switch, the switch belongs to grade PC do not frequently switch, suitable for AC 50Hz, rated current 6A-63A AC power distribution system, mainly use to detect the user`s main power or standby power if normal, when power abnormal immediately switched to the standby power supply, ensuring supply continuity, reliability and security.

 Additional Information
Colour  White
Amps  63A
Voltage AC 230V±30%
Material Aluminium
Additional Information
  • DC power supply: DC(8-35)V between VIN and GND
  • Measured voltage: Rated line voltage 400V; 50Hz/60Hz: 3 phase 4 wire.
  • Range of abnormal power
    Over voltage threshold: 240~290, 5V. Default: 264 5V.
    Under voltage threshold: 164~198V, 5V. Default: 172 5V
  • Voltage normal delay: (1~60) seconds.
  • Voltage abnormal delay: (1~60) seconds, default: 5 seconds.
  • Genset start delay: Issued at a default of 5 seconds.
  • Genset start delay: Is set at default 60 seconds.
  • Envoirment conditions:
    Working Temperature: (-30~+70) C.
    Humidity: (20~95)%RH.
Warranty 1 Year
