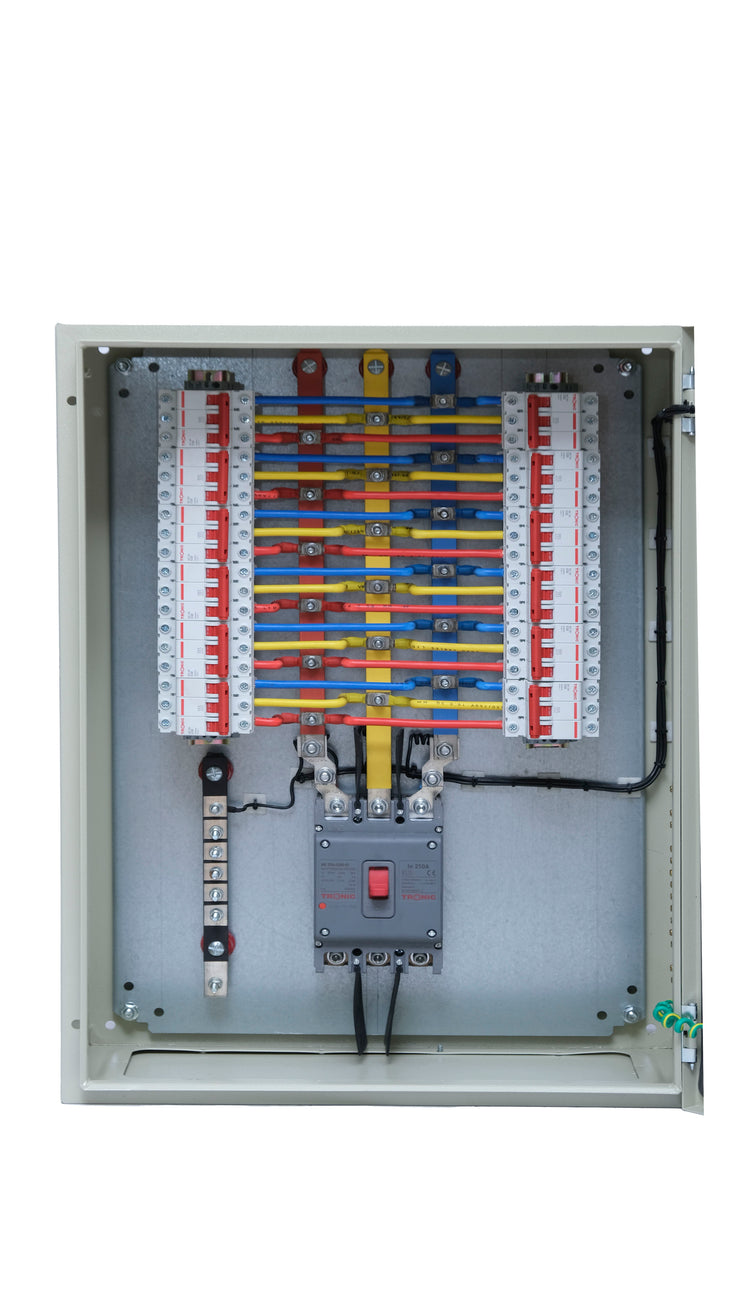

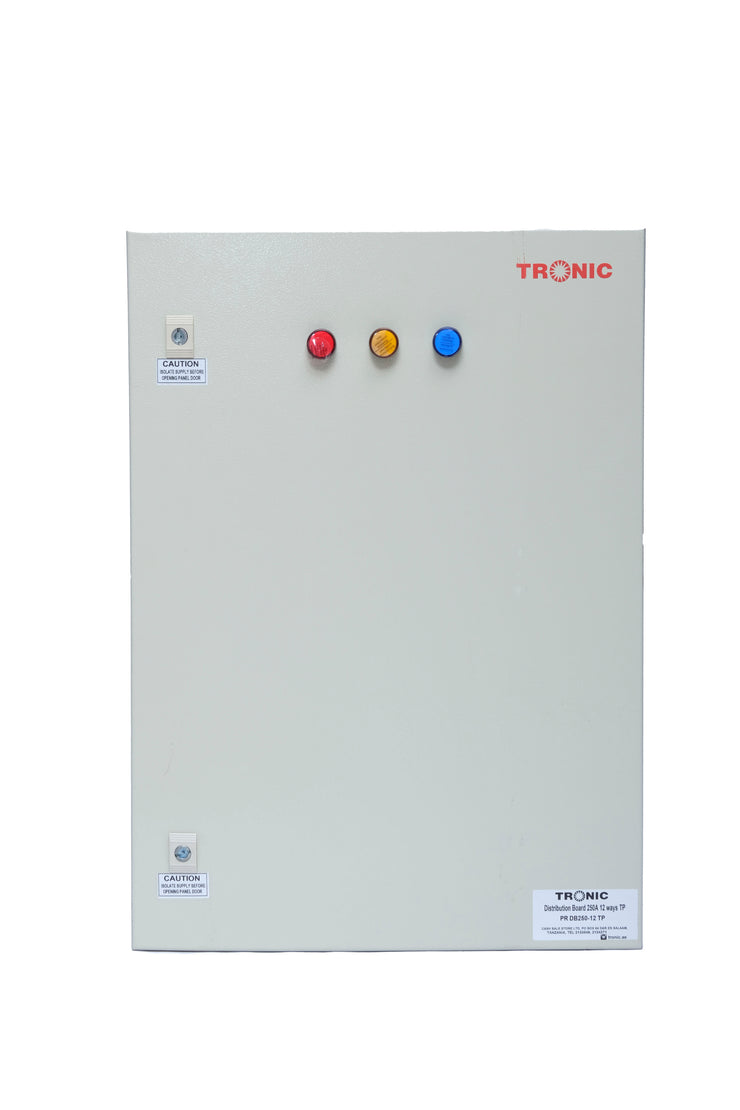

250A 12 Ways Three Phase Distribution Board
1,125,000.00 TZS
Product SKU : PR DB250-12 TP
Availability : In Stock
- description
| Item Description | 250A 12 ways TPN Distribution Board | |
| Functional components | Incomer | 250A TP MCCB |
| Outgoing | Provision for 1A-63A TP MCB (12pc) | |
| Rated Voltage | 400V | |
| Rated Current | 250A | |
| Features | Readymade & simple, safe operation | |
| Form 2b Type 1 separation | ||
| Three Phases Pilot Lamp Indications with Voltage reading for each Phase | ||
| Elegant & sleek in appearance | ||
| Enclosure details | Dimensions | 500mm (length) * 700mm (height) * 250mm (depth) |
| Colour | RAL 7032 | |
| Coating | Epoxy Polyester Powder Coating Textured Finish | |
| Mounting | Wall-mountable | |
| Cable entry | Bottom | |
| Mechanical Impact Rating | IK 10 | |
| Ingress Protection Rating | IP 66 | |
| Material & Coating | Steel | |
| Operating environment | Water and moisture | Minimal water jets and Moisture |
| Vibration & Gas | No strong vibrations and no harmful gases that may corrode the metallic parts or the PVC enclosure and damage the insulation | |
