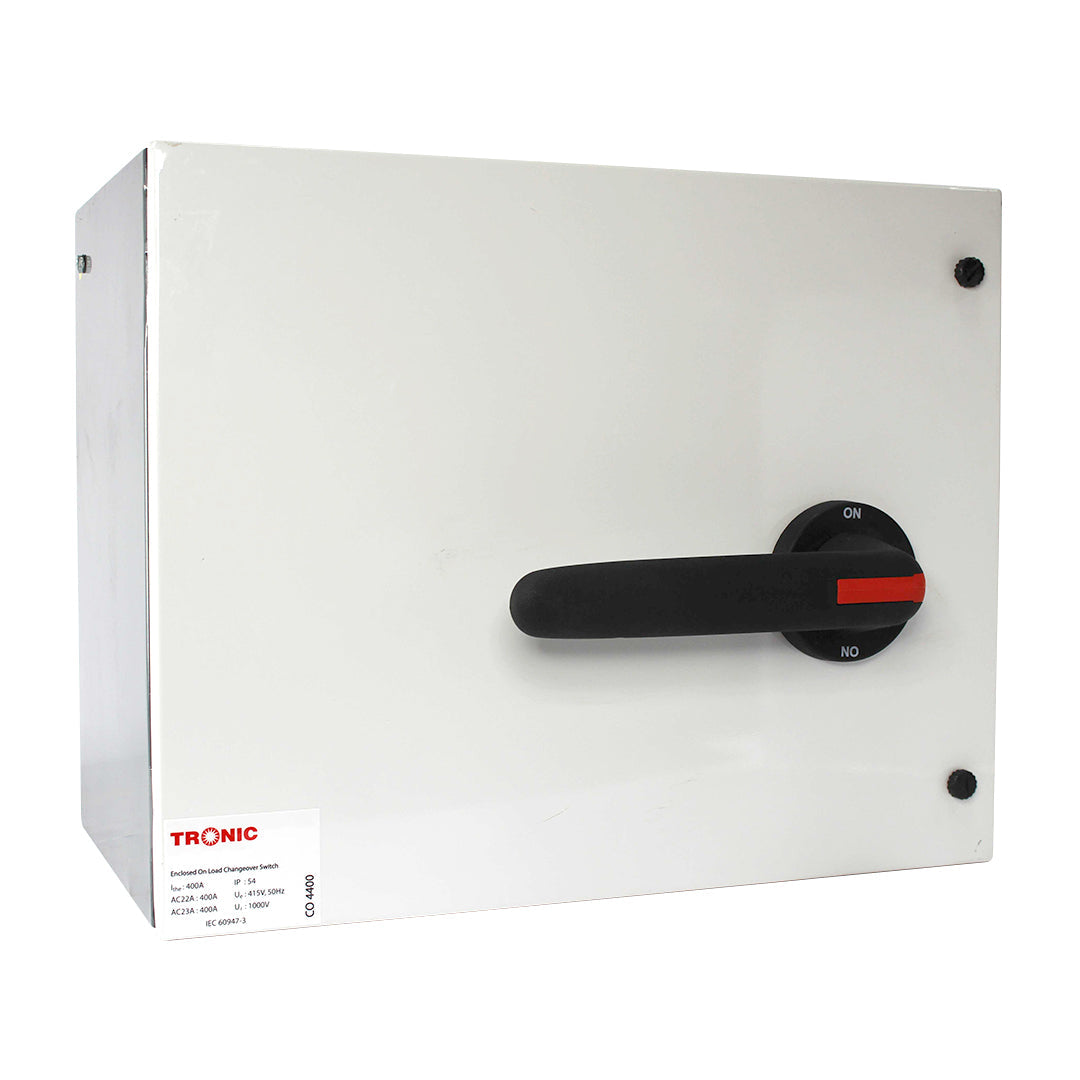

Onload Enclosed Manual Change Over 400A

1,300,000.00 TZS

Product SKU : CO 4400

Availability : Out Stock





FUNCTION:

  • On Load manual changeover between 2 sources.
  • Emergency Breaking
  • Selection between two loads
  • Safe isolation of downstream loads for maintenance purpose
 Additional Information
Colour Grey
Amps 400A
Voltage AC 415
Item Dimensions H 350mm x W 455mm
Material Aluminium

General Characteristics:

  • CRCA Sheet (Door 1.2 mm & Body 1.6mm) 63A to 800A
  • CRCA Sheet (Door 1.6mm & Body 2.0mm)1000A to 3150A
  • 2 External earthing points on each side
  • Wall mounted with 4 bolts
  • Door locking system allows opening of door only in OFF position
  • Incoming & outgoing easily interchangeable at site
  • Coating of epoxy polyester powder 70 micron
  • Removable plate top & bottom
  • Door with solid hinges
Warranty 1 year
Application switching from one power source to another
