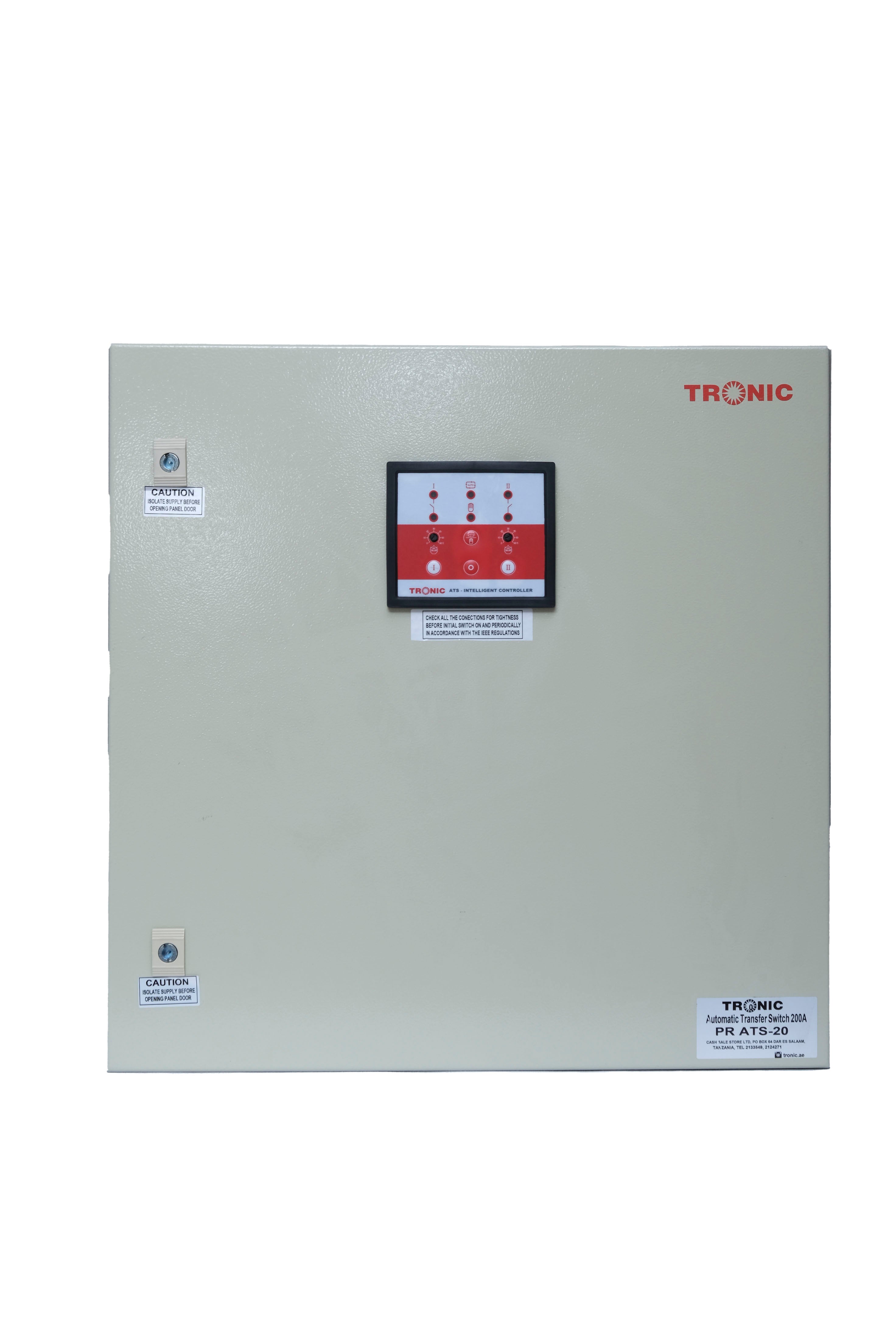

Automatic Transfer Switch 200A

3,250,000.00 TZS

Product Vendor : PR ATS-200

Availability : In Stock





TRONIC Automatic Transfer Switch (ATS) controller uses microprocessor as its core which can precisely monitor voltage (loss of main power). The ATS will start functioning in the following circumstances; loss of power, over voltage, under voltage phase.

200A 4 pole automatic transfer switch unit which, in the event of a power outage, will automatically start a generator and transfer the load over to the Generator supply. When the Main supply returns to normal, the ATS will transfer the load back to the Main supply and shut down the generator.

200A 4 pole automatic transfer switch unit which, in the event of a power outage, will automatically start a generator and transfer the load over to the Generator supply. When the Main supply returns to normal, the ATS will transfer the load back to the Main supply and shut down the generator.

 Additional Information

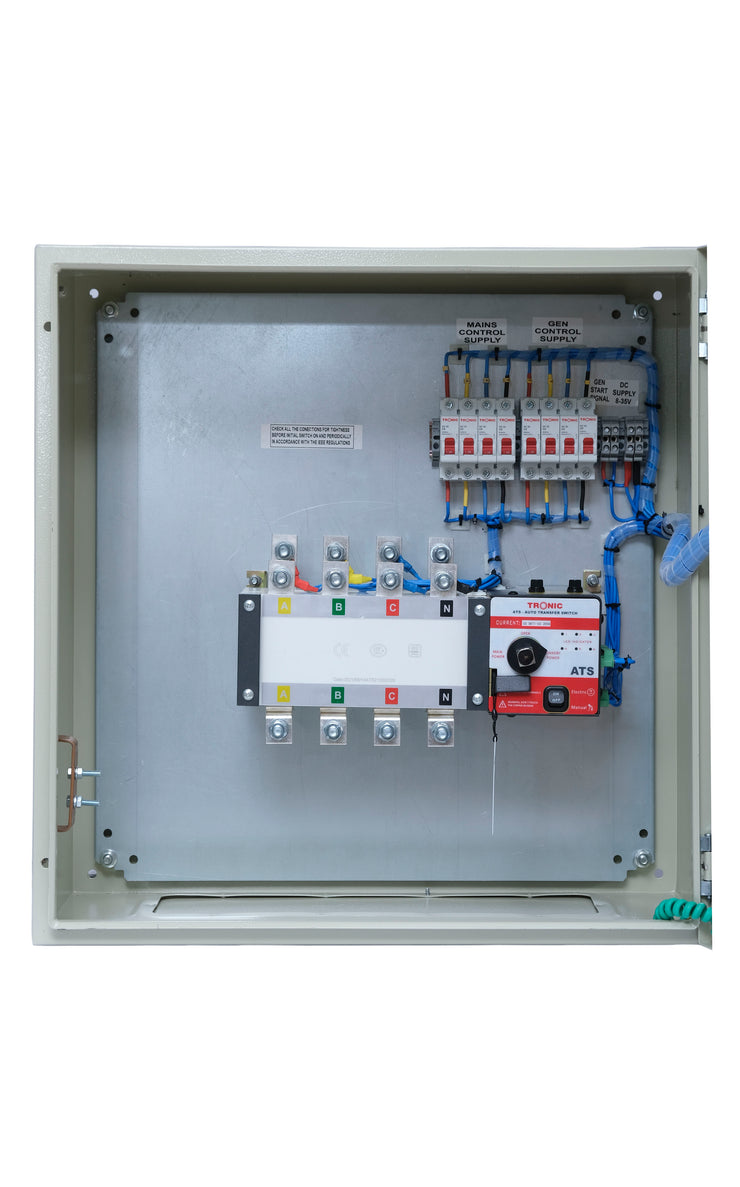

Functional components A 4 pole motorised, rotary transfer switch operated by the Tronic Intelligent ATS controller
Enclosure details Dimensions 600mm (length) * 600mm (height) * 300mm (depth)
Mounting Wall-mounted
Cable entry Bottom
IP Rating 55
Control & Pilot Lamp wiring 1.5sq.mm flexible cable
Operation Modes Motorised Manual using pushbuttons on controller interface
Automatic
Unmotorised Manual by hand using rotary handle
Pilot lamp indications Provided on the intelligent controller interface --> Main Supply available
Gen Supply Available
Load on Main Supply
Load of Gen Supply
Auto Operation
Manual Operation
Operating environment Operating temperature -20 to 45°C
Operating humidity 40%
Altitude <2000m asl
Vibration & Gas No strong vibrations and no harmful gases that may corrode the metallic parts and damage the insultation
ATS Controller specifications AC power supply 230V±30% (50Hz)
DC power supply 8-35V
Measured Voltage Line voltage 400V 3 Phase 4 wire
Transfer Switch specifications Rated Current (In) 200A
Rated insultation voltage of copper bar (Ue) 660V
Rated impuls withstand voltage (Uimp) 6kV
Rated operating voltage of copper bar (Ue) 400VAC
Use category AC-33A
Rated making capacity 10Ie
Rated breaking capacity 10Ie
Rated limit short-circuit current 35kA
Rated operating voltage of the control power Us 220VAC
