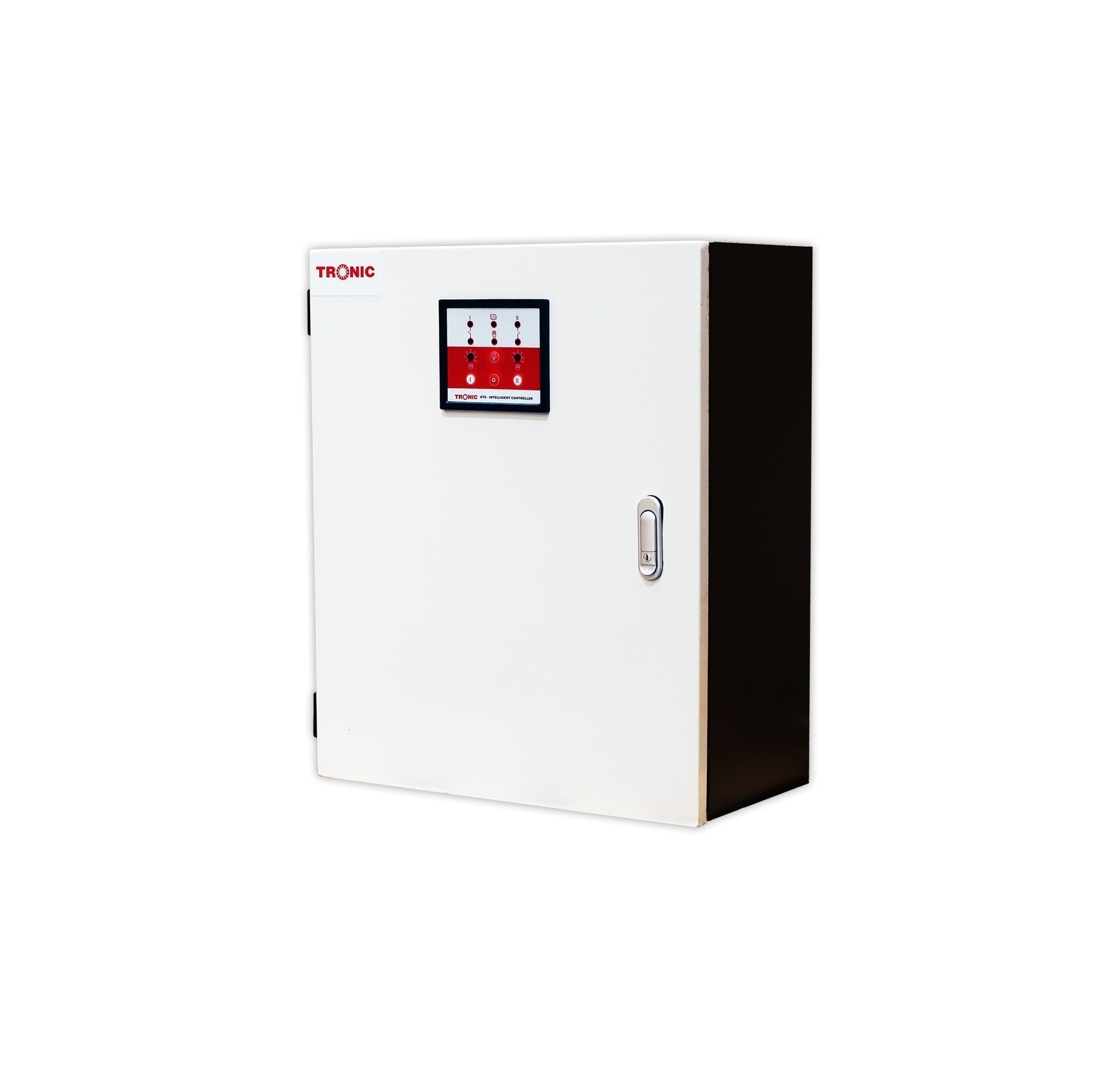

Automatic Transfer Switch 800A - Tronic Kenya

Automatic Transfer Switch 800A

SKU CO 0800-AT
Sold Out
6,410,000.00 TZS - 6,410,000.00 TZS
6,410,000.00 TZS
6,410,000.00 TZS - 6,410,000.00 TZS
6,410,000.00 TZS
Availability:
Out of Stock

Delivery time

1-3 Days

Description

 The TRONIC Automatic Transfer Switch (ATS) controller's key component is a microprocessor, which can precisely monitor voltage (loss of main power). The ATS will begin working in the following situations: power outage, an overvoltage or undervoltage phase.

  • DC power supply: DC(8-35)V between VIN and GND
  • Measured voltage: Rated line voltage 400V; 50Hz/60Hz: 3 phase 4 wire.
  • Range of abnormal power
    Over voltage threshold: 240~290, 5V. Default: 264 5V
    Under voltage threshold: 164~198V, 5V. Default: 172 5V
  • Voltage normal delay: (1~60) seconds
  • Voltage abnormal delay: (1~60) seconds, default: 5 seconds
  • Genset start delay: Issued at a default of 5 second
  • Genset start delay: Is set at default 60 seconds
  • Working Temperature: (-30~+70) C
  • Humidity: (20~95)%RH

Specifications:

  • Colour: White
  • Amps: 800A
  • Voltage:  AC 230V±30%
  • Material: Aluminium
  • IP Rating: IP66

Warranty:

1 Year
