The Busbar Chambers is fabricated using sheet steel (CRCA) of 1.6mm thickness and epoxy powder coated to give superior & lasting finish. The busbar sections are made of ETP grade copper & dull tin plated and the busbar supports are made of DMC(Dough molding compound). The neutral busbar is fully rated.

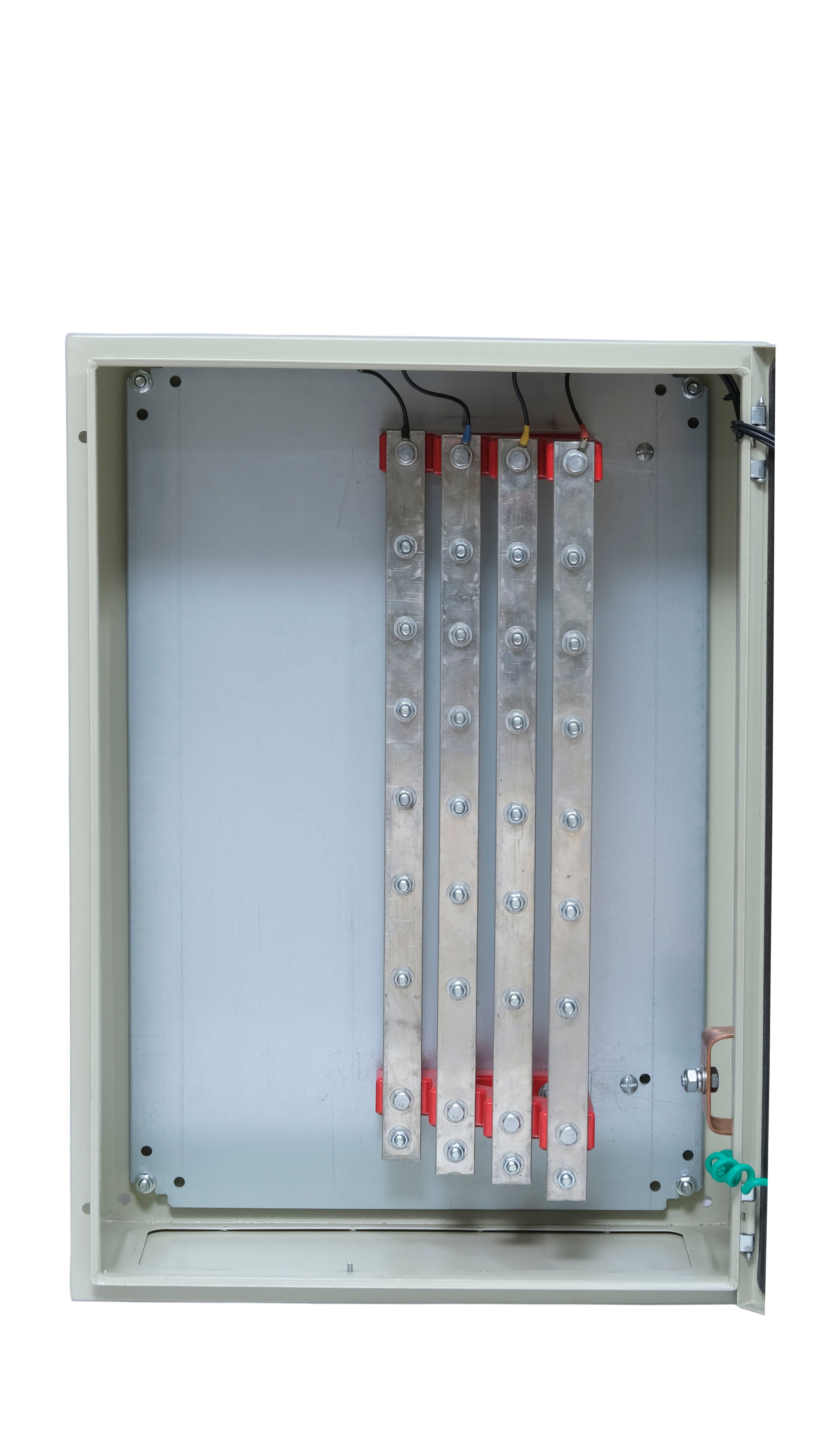

400A TPN Busbar Chamber is a set of busbar strips housed inside of a freestanding enclosure designed for safe, reliable and economical distribution of high current to various loads.
|Functional components||Tinned Busbar strips for three phase and neutral|
|No. of outgoing ways||6 ways|
|Features||Readymade & customized solution for safe power distribution|
|Modular/compact design provides economy of space and cost|
|Simple and efficient system configuration|
|Easy, flexible and time saving installation|
|Shock proof design|
|Elegant & sleek in appearance|
|Busbars vertically oriented|
|Enclosure details||Dimensions||500mm (length) * 700mm (height) * 250mm (depth)|

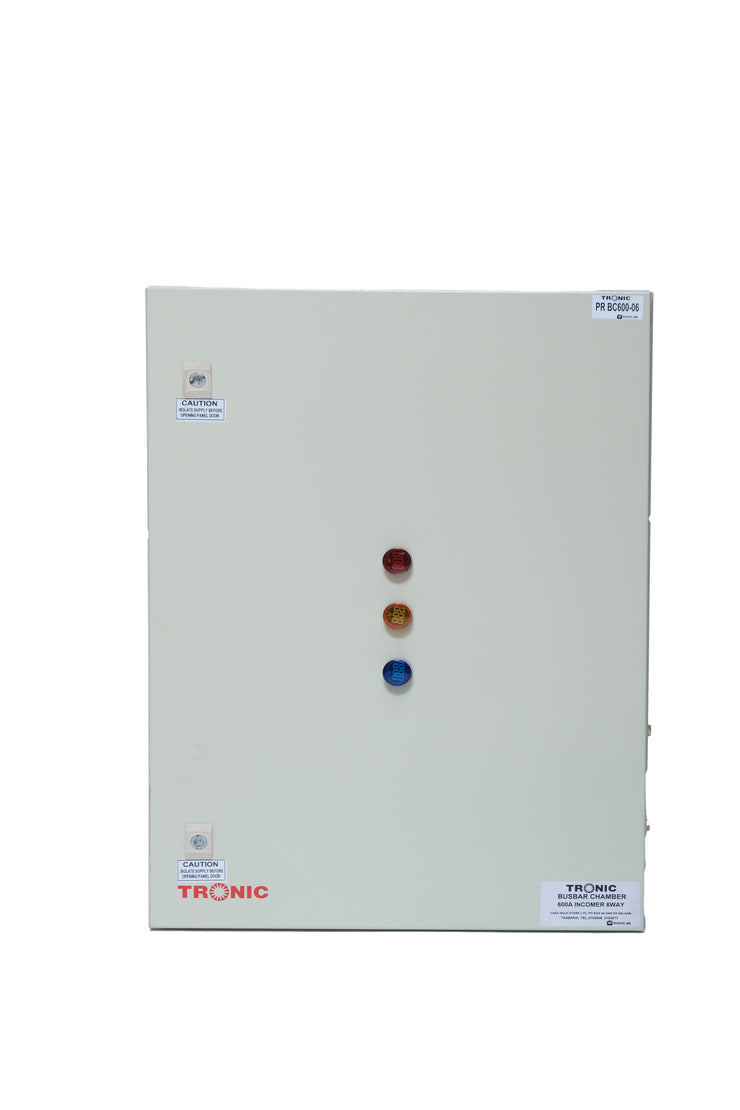

|Pilot lamp indications||Provided on the Panel Door||3 Phase Supply|
|Phase voltage readings|
|Operating environment||Vibration & Gas||No strong vibrations and no harmful gases that may corrode the metallic parts and damage the insulation|
