0.00 TZSThe Busbar Chambers is fabricated using sheet steel (CRCA) of 1.6mm thickness and epoxy powder coated to give superior & lasting finish. The busbar sections are made of ETP grade copper & dull tin plated and the busbar supports are made of DMC(Dough molding compound). The neutral busbar is fully rated.

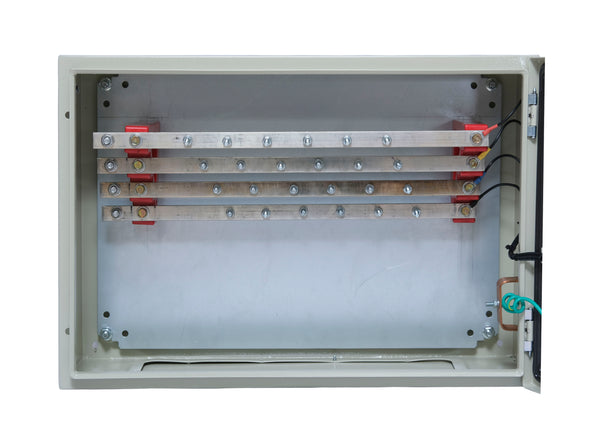

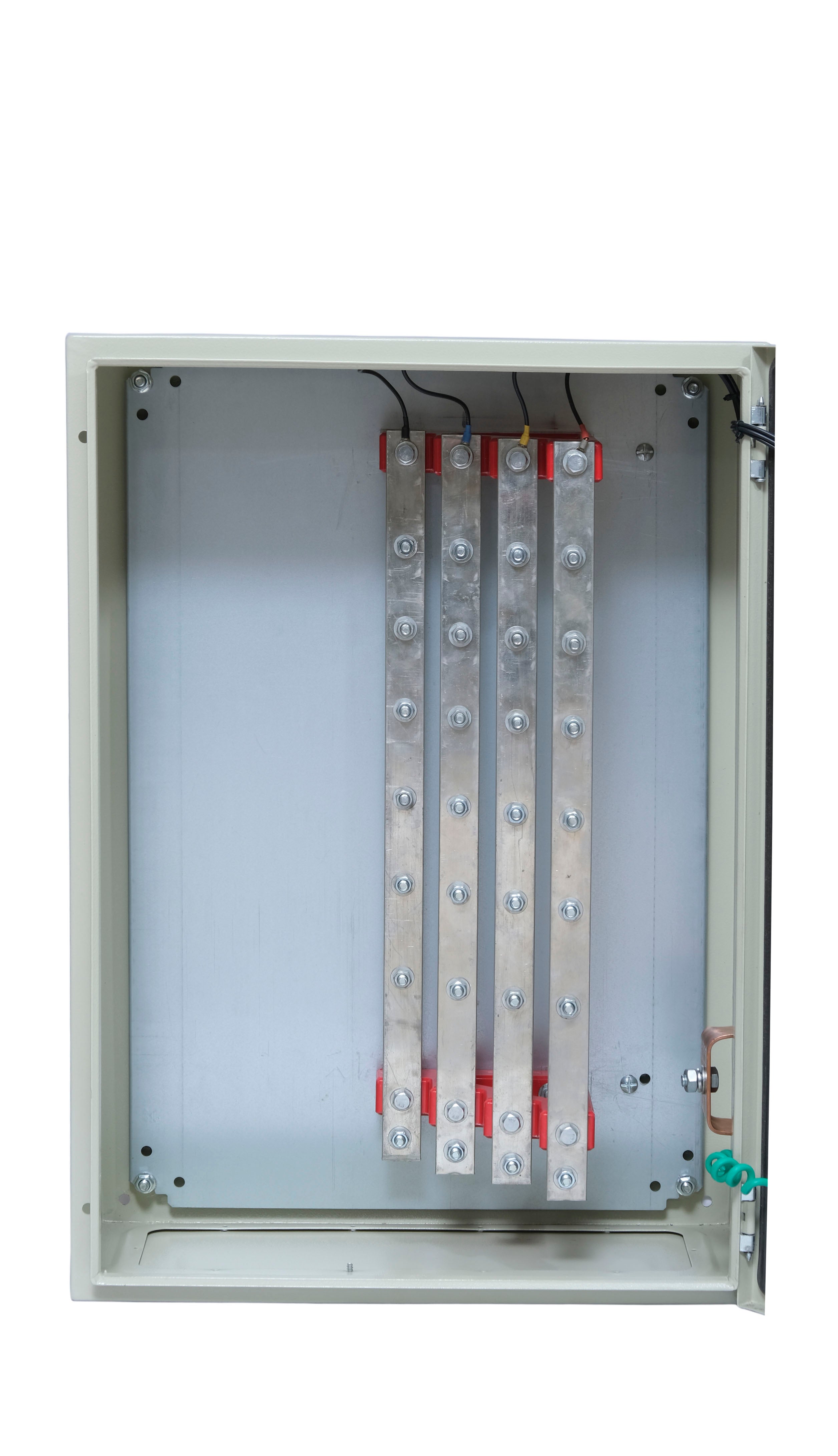

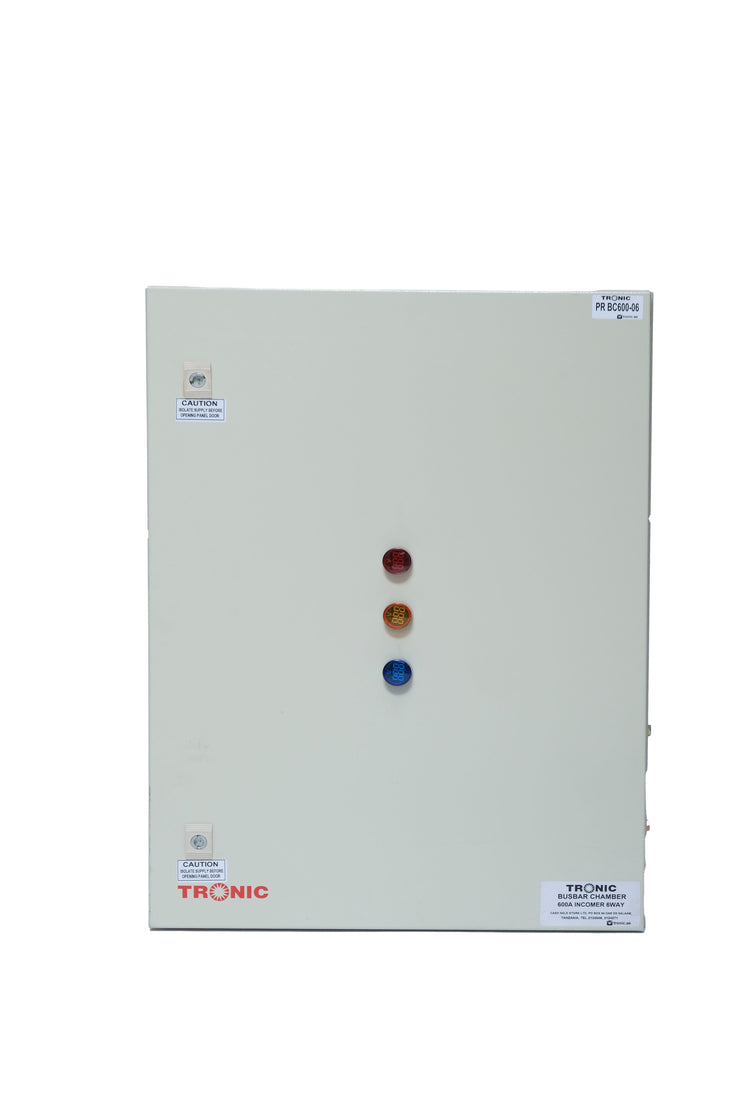

600A TPN Busbar Chamber is a set of busbar strips housed inside of a freestanding enclosure designed for safe, reliable and economical distribution of high current to various loads.
Additional Information |
Functional components | Tinned Busbar strips for three phase and neutral | |
Rated Voltage | 400V | |
Rated Current | 600A | |
No. of outgoing ways | 6 ways | |
Features | Readymade & customized solution for safe power distribution | |
Modular/compact design provides economy of space and cost | ||
Simple and efficient system configuration | ||
Easy, flexible and time saving installation | ||
Shock proof design | ||
Elegant & sleek in appearance | ||
Busbars vertically oriented | ||
Enclosure details | Dimensions | 500mm (length) * 700mm (height) * 250mm (depth) |
Mounting | Wall-mountable | |
Cable entry | Bottom | |
IP Rating | 55 | |
Input/output Terminals | M10 | |
M8 | ||
Pilot lamp indications | Provided on the Panel Door | 3 Phase Supply |
Phase voltage readings | ||
Operating environment | Vibration & Gas | No strong vibrations and no harmful gases that may corrode the metallic parts and damage the insulation |
